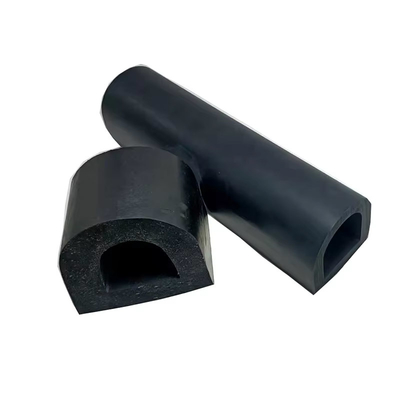

Boat Dock Bumper Premium Rubber Innovative Design Eco Friendly High Load Capacity
Description
The V-type Dock Rubber Fender is designed to protect berthing vessels and dock structures under demanding maritime conditions. Its high-quality synthetic rubber construction provides excellent elasticity, UV and saltwater resistance, and impact absorption. The V-shaped design ensures effective distribution of berthing energy, minimizing damage to both vessels and piers.
Case Study
At the Shanghai Yangshan Port, the fender was deployed along a high-traffic container terminal. Within six months, port operators noted fewer maintenance interventions and a significant reduction in vessel hull abrasions. The fender effectively accommodated container ships of up to 18,000 TEU, confirming its suitability for busy commercial ports.
Specifications
| Place of Origin | China |
| Product Name | Dock Rubber Fender |
| Type | D Shape Type |
| Processing Service | Compression Moulded |
| Color | Black (More Colors Optional) |
| Material | Smooth NR |
| Performance | Excellent chemical and Physical Property |
| Logo | Customer's Request |
| Application | Port, Dock, Boat |
| Type | Specifications | ||||||||
| H | B | L | Holes | Q | C | h | D | d | |
| D150x150x1000 | 150 | 150 | 1000 | 3 | 350 | 150 | 25 | 40 | 24 |
| D200x200x1000 | 200 | 200 | 1000 | 3 | 353 | 150 | 35 | 55 | 30 |
| D200x200x3000 | 200 | 200 | 3000 | 8 | 400 | 100 | 35 | 55 | 30 |
| D250x250x1000 | 250 | 250 | 1000 | 3 | 350 | 150 | 35 | 60 | 30 |
| D250x250x3000 | 250 | 250 | 3000 | 8 | 400 | 100 | 35 | 60 | 30 |
| D300x300x1000 | 300 | 300 | 1000 | 3 | 350 | 150 | 40 | 65 | 32 |
| D300x300x3000 | 300 | 300 | 3000 | 8 | 400 | 100 | 40 | 65 | 32 |
| D300x360x1000 | 300 | 360 | 1000 | 3 | 350 | 150 | 40 | 65 | 32 |
| D300x360x3000 | 300 | 360 | 3000 | 8 | 400 | 100 | 40 | 65 | 40 |
| D400x400x1000 | 400 | 400 | 1000 | 3 | 400 | 150 | 55 | 80 | 32 |
| D400x400x3000 | 400 | 400 | 3000 | 8 | 400 | 100 | 55 | 80 | 40 |
| D500x500x1000 | 500 | 500 | 1000 | 3 | 350 | 150 | 90 | 97 | 45 |
| D500x500x3000 | 500 | 500 | 3000 | 8 | 400 | 100 | 90 | 97 | 45 |
| TECHNICAL DATA | ||
| PROPERTIES | TEST STANDARD | VALUES |
| Compound | - | NR / SBR |
| Density (Specific Gravity) | DIN 53505 | 1200 kg/m3 |
| Tensile Strength | DIN 53504 | ≥16 MPa |
| Elongation at Break | DIN 53504 | ≥350% |
| Tear Resistance (23°C) | DIN 53507 | ≥80 N/cm |
| Abrasion Resistance | DIN 53516 | ≤100mm3 |
| Compression Set (24hrs @ 70°C) | DIN 53517 | ≤40% |
| Ozone Resistance (ppm 20% 72hrs @ 40°C) | ISO 143/1 | No Cracking Visible By Eye |
| Change In Hardness | DIN 53504 | ≤5° |
| Change In Tensile Strength | DIN 53504 | ≥80% |
| Change In Elongation at Break | DIN 53504 | ≥80% |
| Minimum Temperature | - | -30°C |
| Maximum Temperature | - | +70°C |
Features
Efficient Impact Absorption
The V-shape geometry dissipates berthing energy evenly, reducing localized stress and protecting dock and vessel structures.
Durable Synthetic Rubber
Resists abrasion, UV radiation, and harsh marine conditions. Laboratory tests show minimal performance degradation after years of service.
Easy Installation Maintenance
Modular design allows horizontal or vertical installation. Individual sections can be replaced without dismantling the whole system.
Cost Effective Environmentally Friendly
Long-lasting design reduces operational costs and complies with international environmental regulations.
Applications
Commercial Container Terminals
Provides protection for container ships during berthing, reducing structural damage to docks and vessels.
Industrial Ports
Suitable for bulk carriers, tankers, and general cargo vessels, resisting chemical corrosion.
Passenger Ferry Terminals
Reduces impact stress and ensures passenger safety during frequent docking.
Why Choose Hongruntong Marine?
Innovative Product Design
Optimized for maximum energy absorption and minimal maintenance.
High Quality Manufacturing
ISO-certified processes ensure consistent, reliable fender performance.
Global Project Experience
Proven installations in Shanghai, Rotterdam, and Singapore confirm fender reliability.
Comprehensive Customer Support
Full technical guidance, maintenance training, and responsive after-sales service.
FAQ
1. Are custom dimensions available?
Yes, we can manufacture fenders to meet specific port or vessel requirements.
2. How resistant is the fender to UV and saltwater?
Highly resistant due to the premium synthetic rubber material.
3. Can it handle high-traffic berthing?
Yes, designed for continuous docking operations in busy commercial ports.
4 Is maintenance complicated?
Minimal maintenance is required, primarily periodic inspection and cleaning.
